2021 IBOX2 PCIE NAND DFU Purple Screen Programmer For iPhone/iPad Repair

This is an article about the introduction of ibox2 programmer features, the main functions of the ibox2 programmer are PCIE Nand flash programming, unbind wifi,DFU purple screen mold for iPhone/iPad.


1. iPhone/iPad PCIE Nand flash memory IC programmer

- Ibox2 programmer can read and write format SYSCFG data of the PCIE BGA110 Nand flash, including iPhone nand flash and iPad nand flash.

- One-click to unbind the WIFI for PCIE Nand flash.

- The detailed model is as follows:

8/8P/SE2/X/XR/XS/XsMax/11/11Pro/11promax
IPxd_mini5
IPxd_Air3
IPxd_8 (2020)
IPxd_Pro (11,2th)
IPxd_Pro (12,9, 3th)
IPxd_Pro (12,9, 4th)

2. DFU Purple screen mold for iPhone iPad

- One-click to enter the purple screen for iPhone/iPad.

- Support to read and write Serial number/Bluetooth/Wifi address without disassembling

- The detailed model is as follows:

6/6P/SE/6S/6SP/7/7P/8/8P/X
IPad  mini 2
IPad mini 3
IPad mini 4
IPad air
IPad air 2
IPad5
IPxd6
IPad Pro (9,7)
IPad Pro (12,9)


Wednesday, October 20, 2021

Fixed ICC PRO Tristar Tester Doesn't Turn On!

Here is an ICC Pro Tristar Hydra Tester doesn't turn on, when press power button, it has no reponse, the screen keeps black. How to fix ICC PRO V2 tester no power issue?



Firstly, we can use the cable and plug in the charger to charge the ICC Pro tester, and press the switch of ICC Pro tester continuously for about 5 minutes, and then we will see the ICC pro screen light up.


If the above method doesn't work, then we need to charge the ICC Pro in another way.

Firstly, we need to open the ICC pro tester. Use a screwdriver or mobile phone pry tool to open the ICC Pro tester housing. (The new ICC Pro V2 tester is screw-secured, so we can use screwdrivers to remove the screws and open the case)

Them connect the ICC PRO tester with a DC power supply, and turn on DC Power supply to charge ICC Pro Tester for a while.

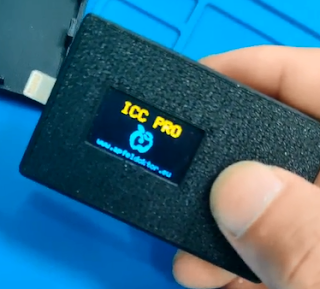

Now disconnect, and press the ICC Pro Tester power button, we will see the ICC pro screen light up, and it turns on successully.
